KD28 Static In-Line Mixer

The Static Inline Mixer, model KD28, is a newly developed static mixer. The mixer assures a homogeneous blending of sludge and polymer in order to achieve the best possible drainage parameters.

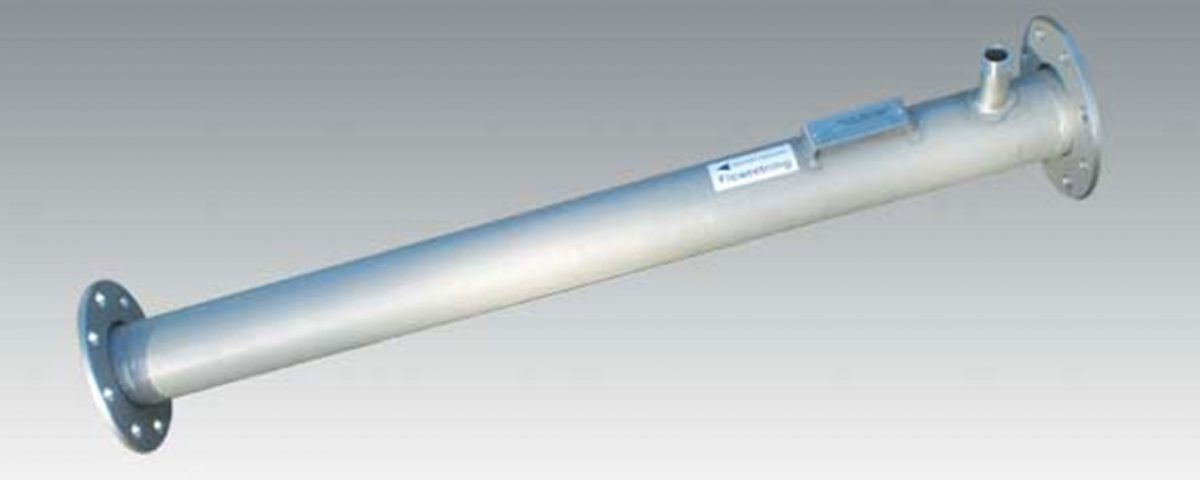

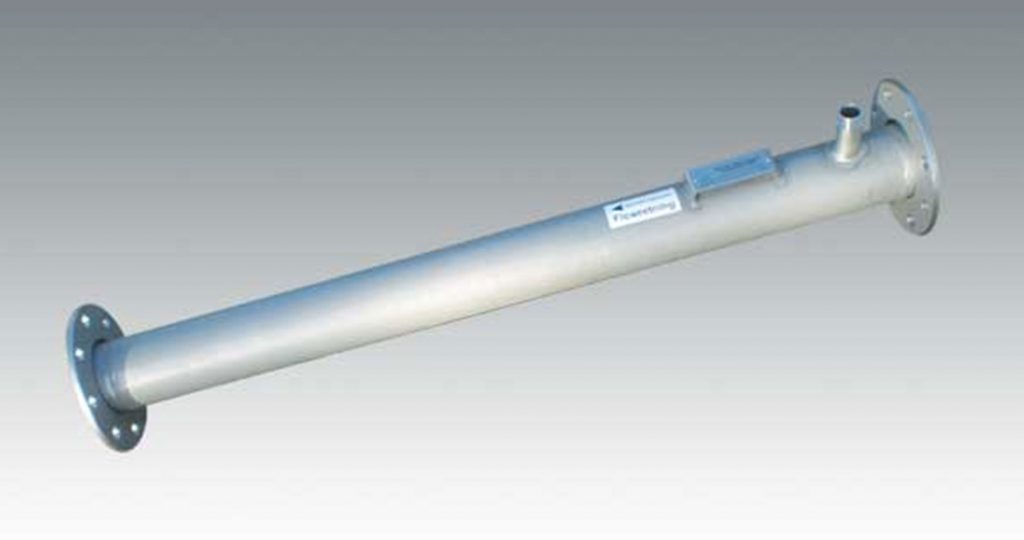

The Static Inline Mixer is built in a tube, which is equipped with DIN flanges. The supply of polymer takes place through a tube ending in the centre of the mixer in such a way that the polymer is added in the middle of the sewage stream, and 20/12 guard plates (obstructions) are mounted for the correct blending of sewage and polymer by constantly changing the configuration of the flow.

The Static Inline Mixer can be separated by pulling the obstruction itself out of the tube in order to make it possible to carry out an easy cleaning in case of blockage. The Static Inline Mixer can be mounted either horizontally or vertically, as you wish.

Advantages of Static Inline Mixer

  • Low investment costs
  • No operating cost
  • Homogeneous distribution of the polymer
  • Easily demounted for cleaning.
  • Technical specification

    A DN32 DN40 DN50 DN65 DN80 DN100 DN125 Dn150 DN200
    Type X X X X X X X X X X
    Type V - - - - X X X X X
    B - X 400 mm 500 mm 600 mm 750 mm 900 mm 1100 mm 1350 mm 1600 mm 2100 mm
    B - V - - - - 900 mm 1200 mm 1450 mm 1700 mm 2200 mm
    C 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm
    D 1⁄4” RG 3/8" RG 3/8" RG 1/2" RG 3/4" RG 1" RG 1 1/4" RG 1 1/2" RG 2" RG
    Specification:
    Type of steel Stainless steel EN1.4301
    Surface treatment Dip-pickled
