KD26 Screw Screen Press

The KD26 Screw Screen Press simultaneously provides the function of drainage and waste compaction. The compactor can be placed directly below the output of a coarse filtration machine or it can be fed by a conveyor.

The machine, is composed of an input hopper connected to a tubular trough that composes the waste drainage area and it’s equipped with a washing system to ensure a more high removal of organic substances contained in the waste materials.

The compacting zone is realized by a discharge pipe-shaped “proboscis” which give to the machine great dewatering performance.

The excellent cleaning of the gratings and the high degree of compaction (up to 60%) reached, allow to reduce, odor problems and disposal costs.

The KD26 can be manufactured in Stainless Steel AISI304-316 (L) and is fully customizable according to the customer needs, but anyways we offer a standard range which can help the customer in his final choose.

[layerslider id="kd26"]



Technical specification

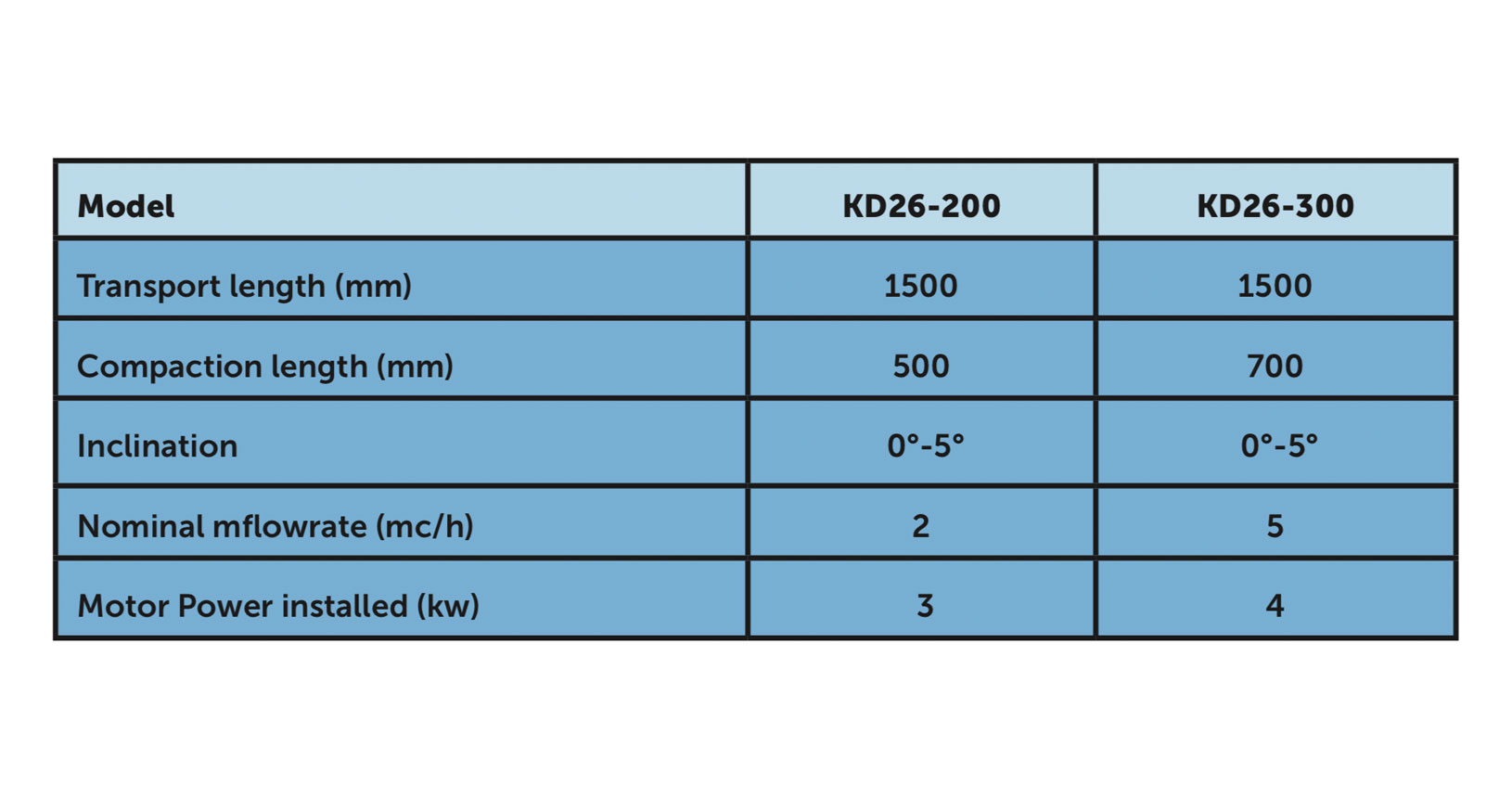

KD26 Specifications

    Contact KD Group about KD26 Screw Screen Press
